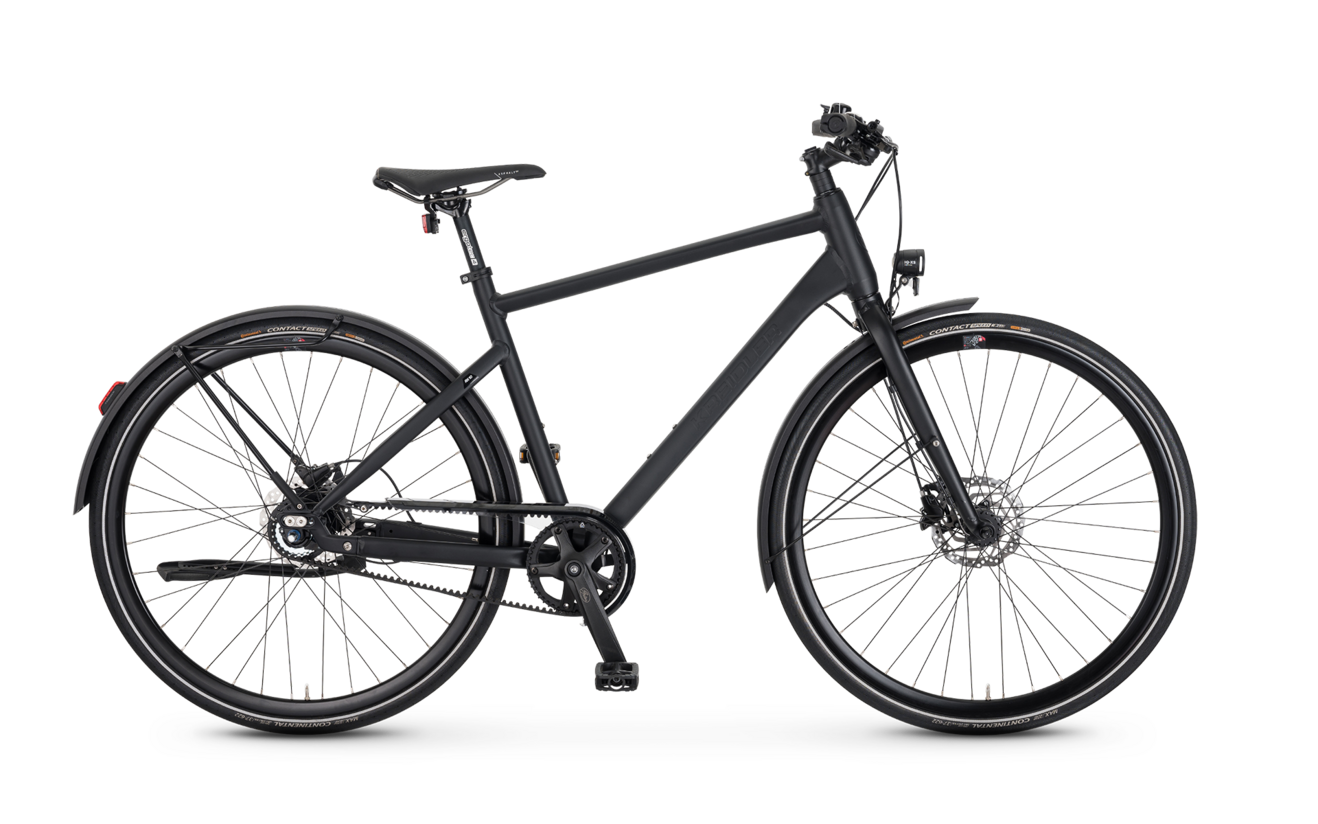

Raise RX10
Raise RX10 Shimano Nexus 8-speed freewheel / Disc / Gates
  • Diamant 28" 50 cm / 55 cm
Colour:
black matt
Price (incl. Vat.) 718.00 €
Händler finden » Compare »

Raise RX10

Shimano Nexus 8-speed freewheel / Disc / Gates

Category: Bicycle / Trekking Bike

Comfortable trekking bike in the mid-range

Specs

Framesize
Diamant 28": 50, 55 cm
Frame
Aluminium 6061, 28" Trekking Urban
max load
140 kg
Color
black matt
Fork
28" Aluminium,
Head set
FSA, 1 1/8“, a-head, semi integrated
Shifting System
Shimano Nexus 8-speed freewheel
Damper
N/V
Derailleur
N/V
Brakes
Shimano BR-MT200 (front 160 mm / rear 160 mm) disc brake
Headlights
Busch & Müller Lumotec IQ-XS, 70 LUX including standinglight
Rear light
Trelock LS 415 Cobe Line, including standinglight
Carriers
Wingee, purse hanger
Saddle
Selle Royal Essenza
Seat post
Humpert Ergotec Atar, patent, 27.2 mm, 300 mm
Pedals
VP-831P, grip tape, black
Kickstand
Pletscher Comp Zoom, rear kickstand
Chainguard
Gates chain guard
Mudguard
Alumee, Aluminium
Weight
14.6 kg
Stem
Promax DA-250, Aluminium, 31.8 mm
Handlebars
Promax HB-3188, Aluminium, 700 mm
Grips
Herrmans DD37, with clamp
Shift lever
Shimano Alfine, 8-speed, Trigger
Brake lever
Shimano Altus, 3-finger brake lever
Tires
Continental Contact Speed, 37-622, reflex
Rims
Mach1 Gravel Disc Aluminium hollow section, 36 holes
Spokes
2.0 mm, black
Front Hub
Shutter Precission PL-8, hub dynamo, Centerlock, 36 holes
Rear Hub
Shimano Nexus 8-speed SG-C6001-8D, Centerlock, 36 holes, freewheel
Sprocket
Gates CDN belt pulley 24 teeth
Chain
Gates CDN-drive belt
Inner bearing
Thun Boogie 3.0
Bottom bracket
Gates CDN, 170 mm, 46 teeth
Gear ratio (front:rear)
46 teeth : 24 teeth
Show all specs + Show less specs Product data sheet
