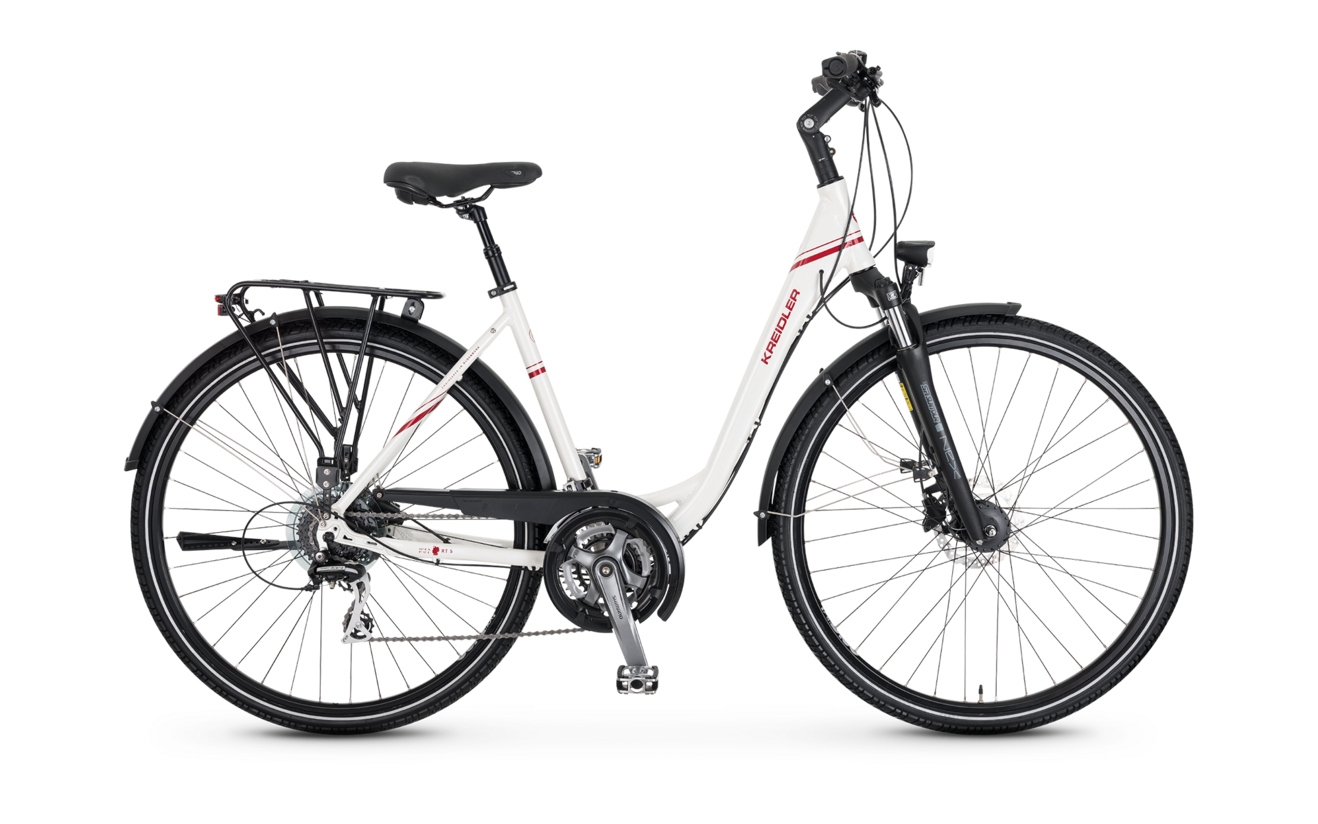

Raise RT5 Sport
Raise RT5 Sport Shimano Alivio 24-speed / Disc
  • Wave 28" 45 cm / 50 cm / 55 cm
  • Trapez 28" 45 cm / 50 cm / 55 cm
  • Diamant 28" 50 cm / 55 cm / 60 cm
Colour:
beige glänzend (only Wave), anthracite matt, petrol matt (only Diamant)
Price (incl. Vat.) 718.00 €
Händler finden » Compare »

Raise RT5 Sport

Shimano Alivio 24-speed / Disc

Category: Bicycle / Trekking Bike

Comfortable trekking bike in the mid-range

Specs

Framesize
Diamant 28": 50, 55, 60 cm
Trapez 28": 45, 50, 55 cm
Wave 28": 45, 50, 55 cm
Frame
Aluminium 6061, 28" Trekking
max load
140 kg
Color
anthracite matt, petrol matt, beige glänzend
Fork
Suntour NEX,
Head set
FSA, 1 1/8“, a-head, semi integrated
Shifting System
Shimano Alivio RD-T4000, 8-speed
Damper
N/V
Derailleur
Shimano Altus FD-M313, 3-speed
Brakes
JAK Y-2 (front 160 mm / rear 160 mm) disc brake
Headlights
Jing Yi LED plastic, 70 LUX including standinglight
Rear light
Trelock LS 655, including standinglight
Carriers
strutless, with spring flap
Saddle
Selle Royal Rio
Seat post
Humpert Ergotec Atar, patent, 27,2 mm, 300 mm
Pedals
Marwi SP-823, black
Kickstand
Hebie 0688, rear kickstand
Chainguard
Horn Catena 16
Mudguard
SKS, plastic
Weight
17.6 kg
Stem
a-head, angle adjustable, Aluminium 31.8mm
Handlebars
Humpert Low Riser, 620 mm
Grips
Hualong HL-G234 Ergo, with clamp
Shift lever
Shimano Altus RS-315, 3-/8-speed
Brake lever
Shimano Altus, 3-finger brake lever
Tires
Schwalbe Marathon Efficiency, 40-622, reflex
Rims
Schürmann YAK19 Disc Aluminium hollow section, 36 holes
Spokes
2.0 mm, black
Front Hub
Shimano DH-3D37, hub dynamo, Centerlock, 36 holes
Rear Hub
Shimano FH-TX505, Centerlock, 36 holes
Sprocket
Shimano CS-HG200, 8-speed, 12-32 teeth
Chain
KMC Z-51
Inner bearing
Thun Topaz
Bottom bracket
Shimano TY-501, 170 mm, 48/38/28 teeth
Gear ratio (front:rear)
48/38/28 teeth : 12-32 teeth
Show all specs + Show less specs Product data sheet
