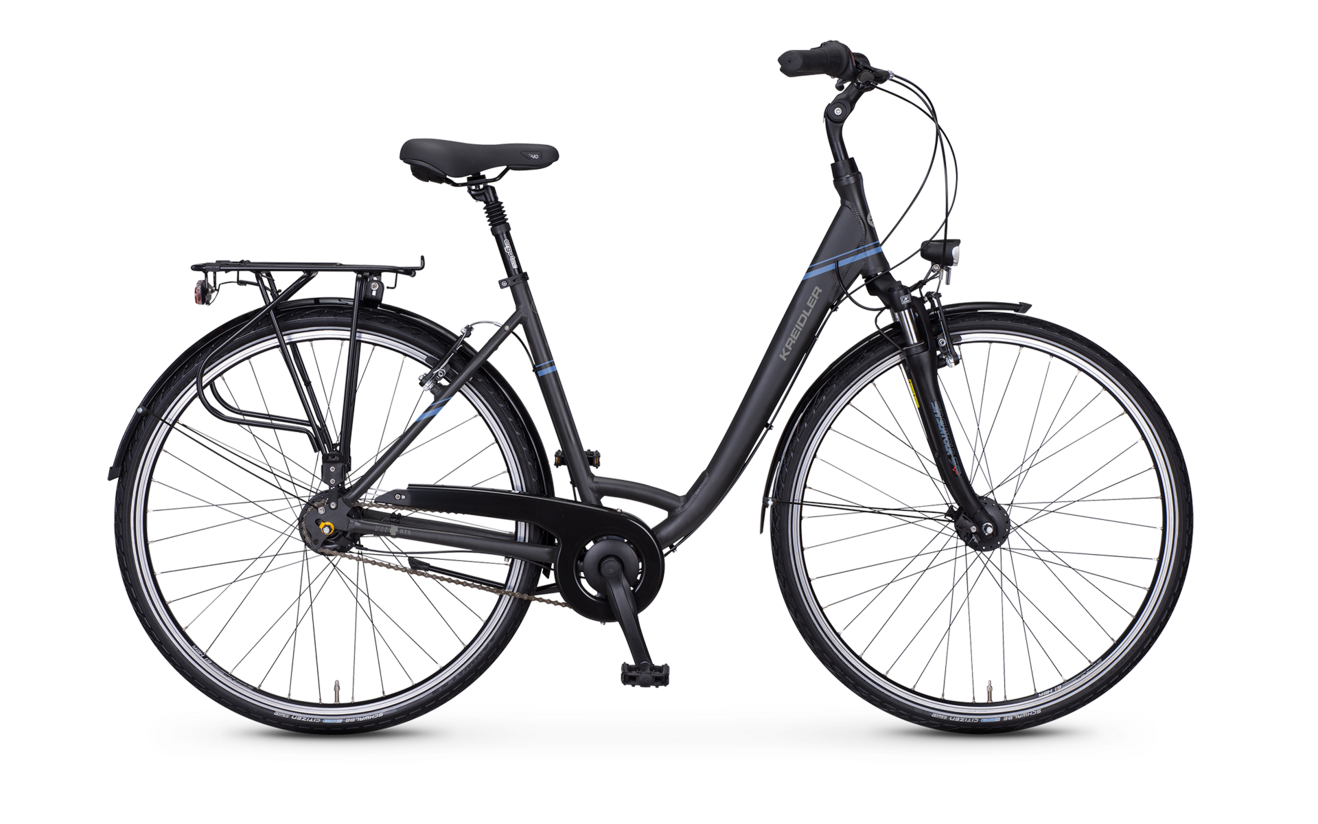

Raise RT5
Raise RT5 Shimano Nexus 8-speed coaster brake / V-Brake
  • Wave 28" 45 cm / 50 cm / 55 cm
  • Trapez 28" 45 cm / 50 cm / 55 cm
  • Diamant 28" 50 cm / 55 cm / 60 cm
Colour:
anthracite matt
Price (incl. Vat.) 718.00 €
Händler finden » Compare »

Raise RT5

Shimano Nexus 8-speed coaster brake / V-Brake

Category: Bicycle / City bike

A superb trekking bike with added comfort

Specs

Framesize
Diamant 28": 50, 55, 60 cm
Trapez 28": 45, 50, 55 cm
Wave 28": 45, 50, 55 cm
Frame
Aluminium 6061, 28" City
max load
120 kg
Color
anthracite matt
Fork
Suntour CR7V,
Head set
Chin Haur, 1 1/8” semi integrated
Shifting System
Shimano Nexus 8-speed coaster brake
Damper
N/V
Derailleur
N/V
Brakes
Shimano Alivio BR-T4000, V-Brake rim brake
Headlights
Jing Yi LED plastic, 70 LUX including standinglight
Rear light
Trelock LS 655, including standinglight
Carriers
strutless, with spring flap
Saddle
Selle Royal Rio
Seat post
Kind Shock KSP-630, patent, suspension, 27.2 mm, 300 mm
Pedals
Marwi SP-823, black
Kickstand
Ursus side kickstand
Chainguard
chain case, plastic
Mudguard
SKS, plastic
Weight
17.6 kg
Stem
Promax MQ-565, Aluminium, angle adjustable, 4-speed clamp
Handlebars
Trekking, steel, 600 mm
Grips
Herrmans DD37, with clamp
Shift lever
Shimano Nexus, twist grip
Brake lever
Shimano Alivio BL-T4010, Aluminium, 3-finger brake lever
Tires
Schwalbe Citizen, 42-622, reflex
Rims
Schürmann YAK19 Aluminium hollow section, 36 holes
Spokes
2.0 mm, black
Front Hub
Shimano DH-C3000, hub dynamo, 36 holes
Rear Hub
Shimano Nexus 8-speed SG-C6001-8C, 36 holes, coaster brake
Sprocket
Shimano 20 teeth
Chain
KMC S1
Inner bearing
Thun Twist 2.0
Bottom bracket
steel, plasticized, 170 mm, 38 teeth
Gear ratio (front:rear)
38 teeth : 20 teeth
Show all specs + Show less specs Product data sheet
