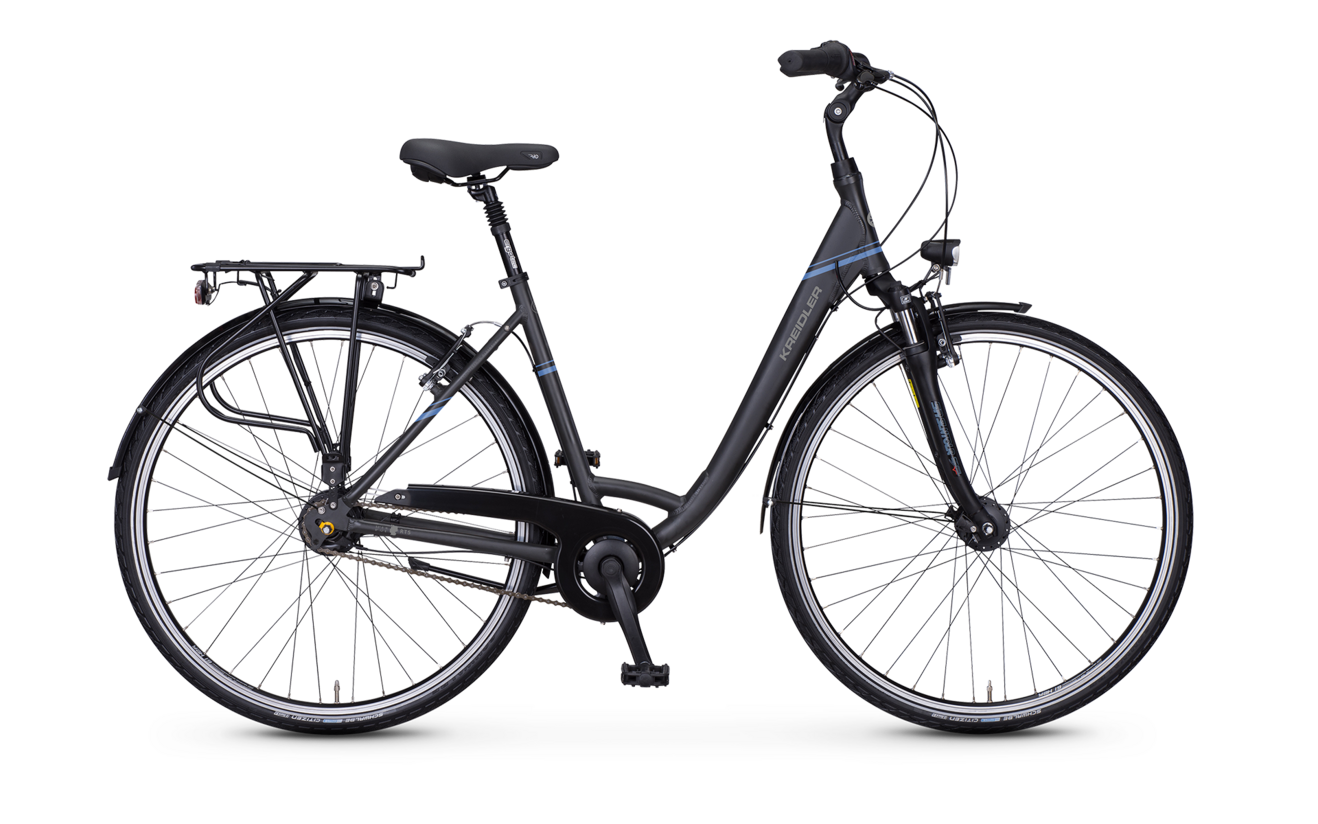

Raise RT5
Raise RT5 Shimano Nexus 8-speed coasterbrake / V-Brake
  • Wave 28" 45 cm / 50 cm / 55 cm
  • Trapez 28" 45 cm / 50 cm / 55 cm
  • Diamant 28" 50 cm / 55 cm / 60 cm
Colour:
anthracite matt
Price (incl. Vat.) 718.00 €
Händler finden » Compare »

Raise RT5

Shimano Nexus 8-speed coasterbrake / V-Brake

Category: Bicycle / City bike

A superb trekking bike with added comfort

Commuting, off to the nursery, on a shopping trip or far into the woods? On the Raise RT5, you can cruise through the city without a hitch and also cut a fine figure on tours in nature. The light, robust aluminium frame is available in three frame shapes and impresses with its particularly high rigidity. With a tried-and-tested rear derailleur from Shimano and a Suntour suspension fork, the Raise RT5 is optimally equipped for daily use.



The RT5 Plus in comfort: Thanks to a sprung seat post and a Selle Royal saddle you can sit particularly comfortably even on longer tours; Herrmans' grips effectively relieve the strain on your wrists. The equipment of the Raise RT5 is rounded off by Schwalbe Citizien Reflex tyres and a practical luggage rack with spring flap.

Specs

Framesize
Diamant 28": 50, 55, 60 cm
Trapez 28": 45, 50, 55 cm
Wave 28": 45, 50, 55 cm
Frame
Aluminum 6061, 28" City
max load
120 kg
Color
anthracite matt
Fork
Suntour CR7V,
Head set
Chin Haur, 1 1/8” semi-integrated
Shifting System
Shimano Nexus 8-speed coasterbrake
Damper
N.V.
Derailleur
N.V.
Brakes
Promax V-Brake Rim brake
Headlights
Jing Yi LED plastic, 70 LUX including standinglight
Rear light
AXA Slim LED, including standinglight
Carriers
steel, with spring flap
Saddle
Selle Royal Rio
Seat post
Kind Shock KSP-630, patent, suspension, 27,2 mm, 300 mm
Pedals
Marwi SP-823
Kickstand
Ursus side kickstand
Chainguard
chainguard, plastic
Mudguard
SKS, plastic
Weight
17,6 kg
Stem
Promax MQ-565, aluminum, angle adjustable
Handlebars
Trekking, Stahl, 600 mm
Grips
Herrmans DD37, with clamp
Shift lever
Shimano Nexus, Twist grip
Brake lever
Tektro, Aluminium, 3-finger Brake lever
Tires
Schwalbe Citizen, 42-622, reflex
Rims
Schürmann YAK19 aluminum, 36 holes
Spokes
2,0 mm, black
Front Hub
Shimano DH-C3000, Hub dynamo, 36 holes
Rear Hub
Shimano Nexus 8-speed SG-C6001-8C, 36 holes, coasterbrake
Sprocket
Shimano 20 teeth
Chain
KMC S1
Inner bearing
Thun Twist 2.0
Bottom bracket
steel, plasticized, 170 mm, 38 teeth
Gear ratio (front:rear)
38 teeth : 20 teeth
Show all specs + Show less specs Product data sheet
