Raise RT5
Raise RT5 Shimano Acera 24-speed / Disc
  • Wave 28" 45 cm / 50 cm / 55 cm
  • Trapez 28" 45 cm / 50 cm / 55 cm
  • Diamant 28" 50 cm / 55 cm / 60 cm
Colour:
beige glänzend (only Wave, Trapez), anthracite matt, petrol matt (only Diamant)
Price (incl. Vat.) 718.00 €
Händler finden » Compare »

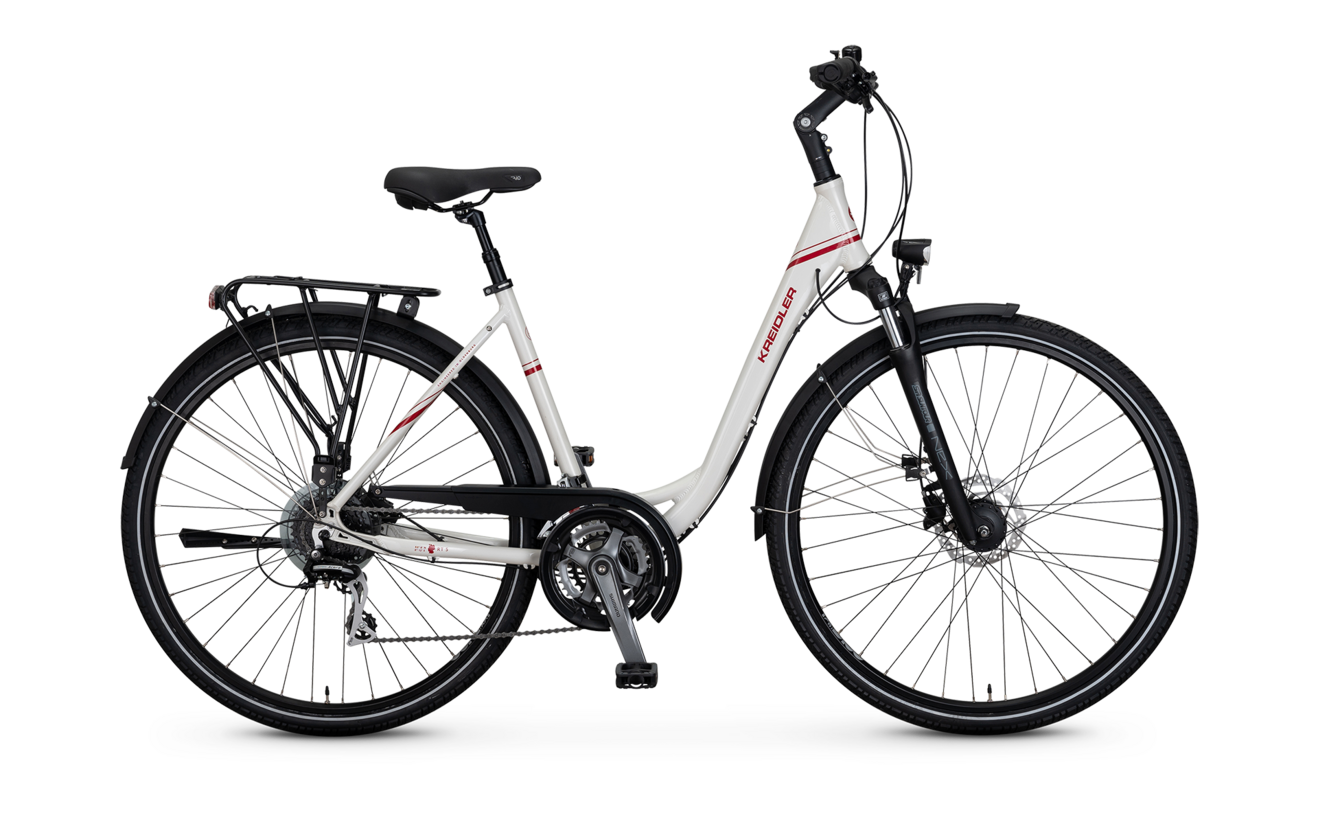

Raise RT5

Shimano Acera 24-speed / Disc

Category: Bicycle / Trekking Bike

Comfortable trekking bike in the mid-range

With the Raise RT5 trekking bike, you can enjoy a carefree ride in urban surroundings as well as off the beaten track. The bike is available with a light aluminium frame in three different shapes and convinces with its high rigidity. With the 24-speed Acera derailleur system from Shimano, a Suntour suspension fork and hydraulic disc brakes – also by Shimano – this trekking bike is well-equipped for virtually every use.



You will sit particularly comfortably on the Selle Royal saddle, and the ergonomic handles by Herrmans also offer a high level of comfort. The equipment package of the Raise RT5 is rounded off by proven Kenda trekking tyres, an AXA LED rear light with parking light and an aluminium luggage rack with a practical spring flap.

Specs

Framesize
Diamant 28": 50, 55, 60 cm
Trapez 28": 45, 50, 55 cm
Wave 28": 45, 50, 55 cm
Frame
Aluminum 6061, 28" Trekking
max load
140 kg
Color
anthracite matt, petrol matt, beige glossy
Fork
Suntour NEX,
Head set
FSA, 1 1/8“, a-head, semi-integrated
Shifting System
Shimano Acera RD-M360, 8-speed
Damper
N.V.
Derailleur
Shimano Altus FD-M313, 3-speed
Brakes
Shimano BR-MT200 (front 160 mm / rear 160 mm) Disc brake
Headlights
Jing Yi LED plastic, 70 LUX including standinglight
Rear light
AXA Slim LED, including standinglight
Carriers
aluminum, with spring flap
Saddle
Selle Royal Rio
Seat post
Humpert Ergotec Atar, patent, 27,2 mm, 300 mm
Pedals
Marwi SP-823
Kickstand
Hebie 0688, rear kickstand
Chainguard
Horn Catena 16
Mudguard
SKS, plastic
Weight
17,6 kg
Stem
a-head, angle adjustable, aluminum 31,8mm
Handlebars
Promax HB-3188, 640 mm
Grips
Herrmans DD37, with clamp
Shift lever
Shimano Altus RS-315, 3-/8-speed
Brake lever
Shimano Altus, 3-finger Brake lever
Tires
Schwalbe Citizen, 42-622, reflex
Rims
Schürmann YAK19 Disc aluminum, 36 holes
Spokes
2,0 mm, black
Front Hub
Shimano DH-3D37, Hub dynamo, Centerlock, 36 holes
Rear Hub
Shimano FH-TX505, Centerlock, 36 holes
Sprocket
Shimano CS-HG200, 8-speed, 11-32 teeth
Chain
KMC Z8
Inner bearing
Thun Topaz
Bottom bracket
Shimano TY-301, 170 mm, 48/38/28 teeth
Gear ratio (front:rear)
48/38/28 teeth : 11-32 teeth
