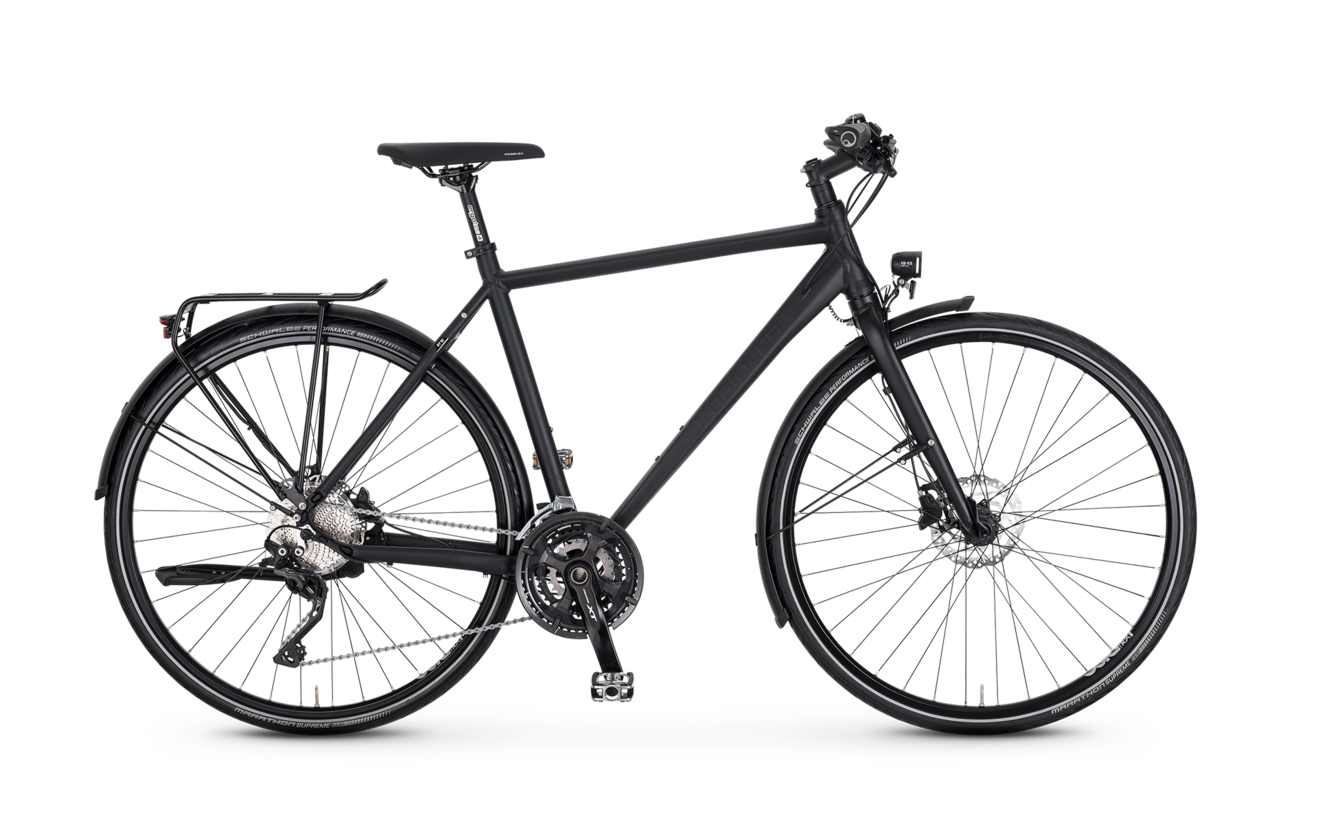

Raise RT10 Sport
Raise RT10 Sport Shimano Deore XT 30-speed / Disc
  • Trapez 28" 50 cm / 55 cm
  • Diamant 28" 50 cm / 55 cm / 60 cm
Colour:
black matt
Price (incl. Vat.) 718.00 €
Händler finden » Compare »

Raise RT10 Sport

Shimano Deore XT 30-speed / Disc

Category: Bicycle / Trekking Bike

Comfortable trekking bike in the mid-range

Specs

Framesize
Diamant 28": 50, 55, 60 cm
Trapez 28": 50, 55 cm
Frame
Aluminium 6061, 28" Trekking
max load
140 kg
Color
black matt
Fork
28" Aluminium,
Head set
FSA, 1 1/8“, a-head, semi integrated
Shifting System
Shimano Deore XT RD-T8000, 10-speed
Damper
N/V
Derailleur
Shimano Deore XT FD-T8000, 3-speed
Brakes
Shimano BR-MT200 (front 160 mm / rear 160 mm) disc brake
Headlights
Busch & Müller Lumotec IQ-XS, 70 LUX including standinglight
Rear light
Trelock LS 655, including standinglight
Carriers
Racktime Light-it, strutless, with spring flap
Saddle
Selle Royal Essenza
Seat post
Humpert Ergotec Atar, patent, 27.2 mm, 300 mm
Pedals
Marwi SP-823, black
Kickstand
Pletscher Comp Zoom, rear kickstand
Chainguard
Shimano chain guard
Mudguard
SKS, plastic
Weight
13.8 kg
Stem
Promax DA-250, Aluminium, 31.8 mm
Handlebars
Promax HB-3188, Aluminium, 640 mm
Grips
Ergon GP1, with clamp
Shift lever
Shimano Deore SL-M6000, 3-/10-speed, with gear indicator
Brake lever
Shimano Altus, 3-finger brake lever
Tires
Schwalbe Spicer Plus, 35-622, reflex
Rims
Schürmann YAK19 Disc Aluminium hollow section, 36 holes
Spokes
2.0 mm, black
Front Hub
Shutter Precission PL-8, hub dynamo, Centerlock, 36 holes
Rear Hub
Shimano Deore FH-M6000, Centerlock, 36 holes
Sprocket
Shimano CS-HG500, 10-speed, 11-34 teeth
Chain
KMC X10
Inner bearing
Shimano Deore SM-BB52, für Hollowtech II, BSA
Bottom bracket
Shimano Deore XT FC-T8000, 170 mm, Hollotech II, 48/36/26 teeth
Gear ratio (front:rear)
48/36/26 teeth : 11-34 teeth
Show all specs + Show less specs Product data sheet
