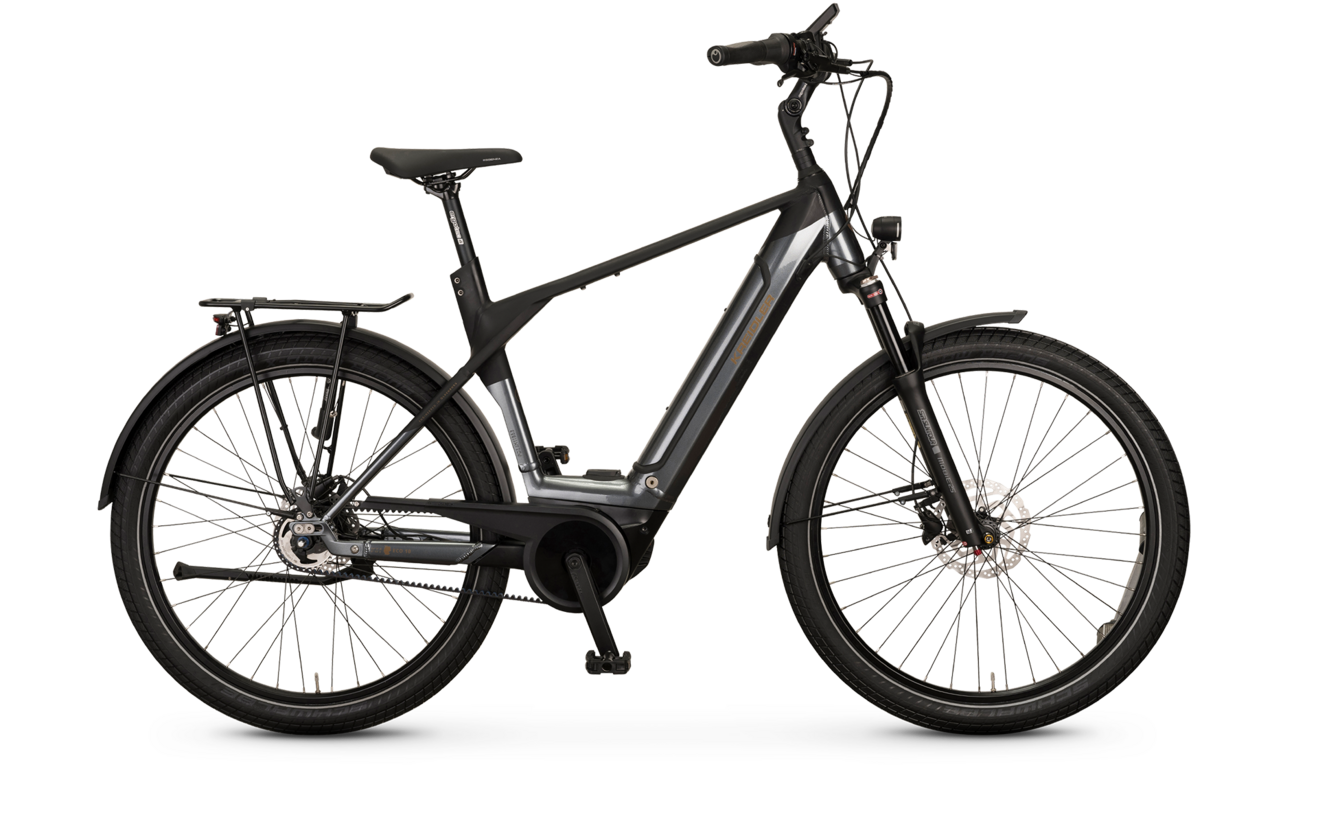

Vitality Eco 10
Vitality Eco 10 Shimano Nexus 5-speed freewheel / Bosch Performance Line CX / 625Wh / Disc / Gates
  • Wave 27,5" 50 cm / 55 cm
  • Diamant 27,5" 50 cm / 55 cm / 60 cm
Colour:
anthracite glossy
Find a dealer » Compare » Range Assistant »

Vitality Eco 10

Shimano Nexus 5-speed freewheel / Bosch Performance Line CX / 625Wh / Disc / Gates

Category: E-Bike / SUV e-bike

Premium class SUV e-bike

Great riding characteristics, a high level of comfort and a focus on safety – with the Vitality Eco 10, there's nothing you need to go without. Schwalbe's premium Super-Moto X tires guarantee this SUV e-bike is perfectly equipped for any terrain. Thanks to the powerful support of the Bosch Performance Line CX (4th generation) drive system and a 625 Wh battery, you can master even longer tours and steep climbs effortlessly. The integrated Nyon touch color display and its separate remote control on the handlebar make it more than easy to switch between the five different riding modes.



Precise, comfortable shifting with the Shimano Nexus 5-speed hub gear, a low-maintenance Gates belt drive as well as Shimano disc brakes – the Vitality Eco 10 is one superbly equipped companion for everyday life and leisure. The high-end features of this SUV e-bike are rounded off by a Suntour Mobie suspension fork, a Busch & Müller LED headlamp and a Herrmanns H-trace back lightning including parking light, a Racktime system luggage rack, and a comfortable Milo Plus saddle by Selle Royal.



Drive unit: Bosch Performance Line CX, 4th generation
36 Volts, mid-engine / Rated power 250 watts



Battery: Bosch frame battery, fully integrated
Energy content: 625 Wh / Voltage: 36 Volts / Capacity: 16.7 Ah



Display: Nyon Touch color display with remote

Specs

Framesize
Diamant 27,5": 50, 55, 60 cm
Wave 27,5": 50, 55 cm
Drive Unit
Bosch Performance Line CX, Gen.4, 36 V Mid-engine, 250 Watt
Display
Nyon, 3,2 inch touch-colour-display with remote
Power
Bosch Frame battery fully integrated, 625 Wh, 36 Volt, 16,7 Ah, Down tube
Frame
Aluminum 6061, Bosch fully integrated
max load
140 kg
Color
anthracite glossy
Fork
Suntour Mobie25, 100 mm travel with lockout-function,
Head set
Acros AZX-212, tapered
Shifting System
Shimano Nexus 5-speed freewheel
Damper
N.V.
Derailleur
N.V.
Brakes
Shimano BR-MT200 (front 180 mm / rear 160 mm) Disc brake
Headlights
Busch & Müller Lumotec IQ-XS Highbeam, with High beam, 150 / 100 LUX including standinglight
Rear light
Trelock LS 654, with brake light function, including standinglight
Carriers
Racktime Stand-it, with spring flap
Saddle
Selle Royal Essenza
Seat post
Humpert Ergotec Atar, patent, 30,9 mm, 300 mm
Pedals
Marwi SP-823
Kickstand
Pletscher Comp Flex, rear kickstand
Chainguard
SKS Chainbow_E
Mudguard
SKS, plastic
Weight
28,6 kg
Stem
Humpert Ergotec Octopus 50, angle adjustable
Handlebars
Humpert Ergotec City Cruiser, 635 mm
Grips
Ergon GP1, with clamp
Shift lever
Shimano Nexus, Twist grip
Brake lever
Shimano Altus, 3-finger Brake lever
Tires
Schwalbe Super Moto, 62-584, reflex
Rims
Schürmann YAK 21 Disc aluminum, 36 holes
Spokes
2,0 mm, black
Front Hub
Shimano Alivio HB-MT400, 15 x 100 mm, Centerlock, 36 holes
Rear Hub
Shimano Nexus 5-speed SG-C7000-5D, Centerlock, 36 holes, freewheel
Sprocket
Gates CDX, 32 teeth
Chain
Gates CDX belt
Inner bearing
N.V.
Bottom bracket
Miranda aluminum, 170 mm, 46 teeth
Gear ratio (front:rear)
46 teeth : 32 teeth
Show all specs + Show less specs Product data sheet
